Portable Generator
Description

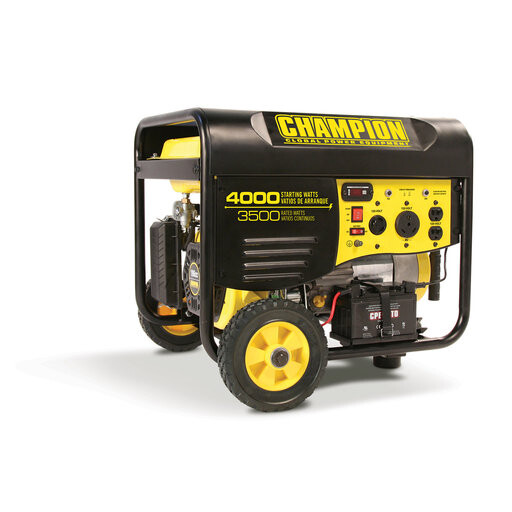

Try Champion’s Model 46565, gasoline powered 4000 peak / 3500 running Watts portable generator. This unit comes equipped with Champion’s wheel kit (WC# 416437), Remote Start (which works up to 80’ away), features 1” durable tubular steel frame for protection, and the 4 gallon tank helps run the generator for up to 12 hours at 50% load. This means you’ll have long-lasting, reliable power whenever you need it. This unit is RV ready.Specifications:Available Accessory (Sold Separately): Matching Cover C90011 (WC# 416439).What Will it Power?: The 3500 running Watts of this generator can power all of your lights, a TV with another small appliance, or a few household items at once.Note: Your large appliances typically require 240 volt power and your lights or other small appliances will typically use 120 volt power. It is important to consider these differences when doing load calculations to decide how many watts and amps you will need in a generator.
Technical Data
| Generator Specifications | |
|---|---|
| Model | 46565 |
| Running Wattage | 3500 Watts |
| Starting Wattage | 4000 Watts |
| AC Load | 120 V |
| Phase | Single |
| Frequency | 60 Hz |
| Fuel Capacity | 3.8 gal. (14.4 L) |
| Gross Weight | 136.5 lb. (61.9 kg) |
| Net Weight | 124.6 lb. (56.5 kg) |
| Height | 22.4 in. (57 cm) |
| Width | 23.9 in. (60.6 cm) |
| Length | 26.3 in. (66.7 cm) |
| Engine Type | 4-stroke, single cylinder, air-cooled engine |
| Engine Size | 6.5 HP, 196cc OHV Champion engine |
| Low oil shut-off | Yes |
| Length with Wheel Kit | 30” |
| Width with Wheel Kit | 24” |
| Height with Wheel Kit | 22” |
| Full runtime | 12 hours at 50% load |
| Full load fuel consumption | .67 gal / hour |
| Noise level (7m) | 68 dB |
| USDA approved spark arrestor | Yes |
| Wheels | 8”, never flat |
| Output Receptacles | 1- 120V twist-lock L5-30R; 1- 120V RV Receptacle TT30R; 2- 120V Duplex 5-20R |
